Squarebody Transmission Specs, Gear Ratios & Drivetrain Highway RPM Simulator
Simulate real-world engine RPM at highway speeds across GM Turbo Hydra-Matic automatics, 4-speed overdrives, and heavy-duty manual gearboxes. Grounded in factory gear teeth counts and SAE J1349 formulas.
Highway RPM, Gear Ratio & Tire Size Simulator
Calculate real-world engine RPM at highway speeds across GM factory 3-speed automatics, 4-speed overdrives, and heavy-duty manual transmissions.
| 55 MPH | 65 MPH | 75 MPH | 85 MPH |
|---|---|---|---|
| 1,558 | 1,841 | 2,124 | 2,408 |

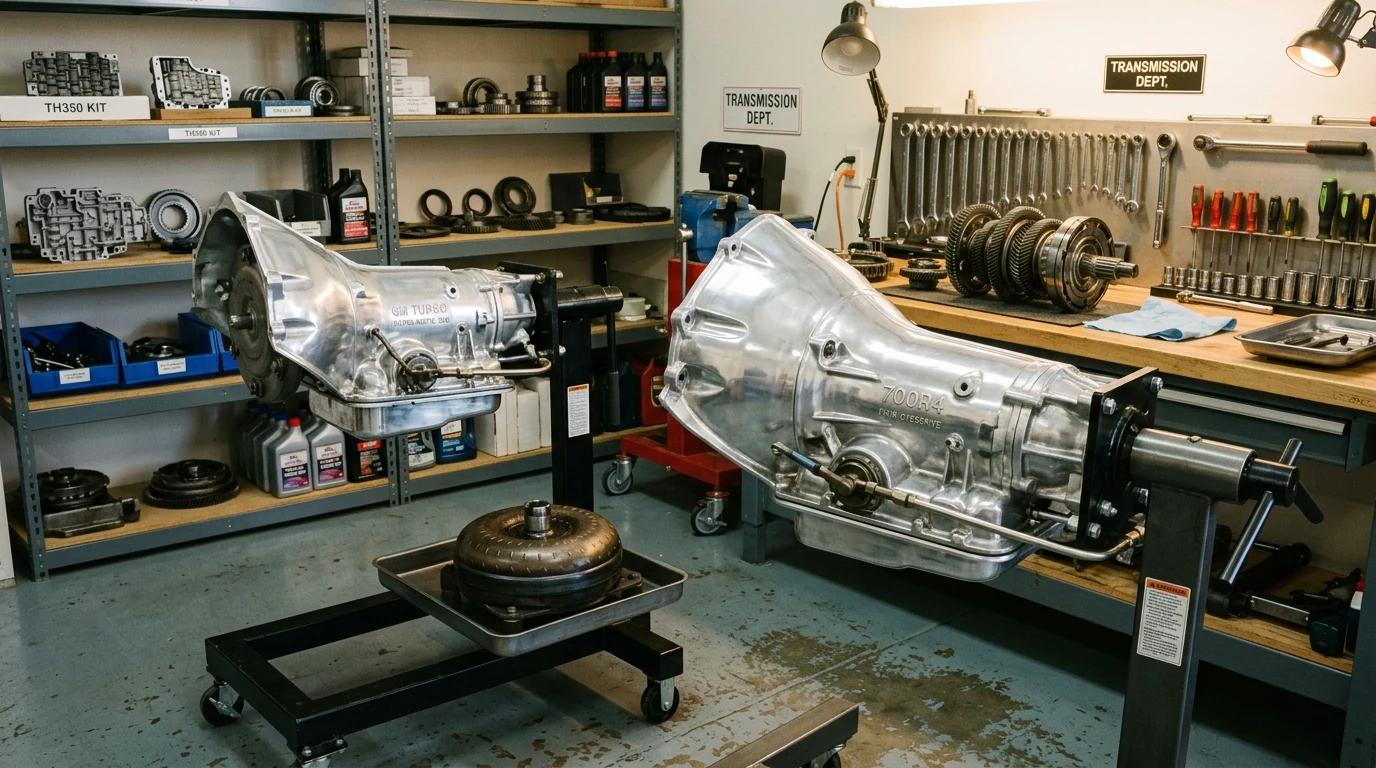

What Transmissions Came in 1973–1987 Chevy & GMC Trucks?
GM Squarebody trucks (1973–1987) utilized five primary factory transmissions: the 3-speed automatic Turbo Hydra-Matic 350 (TH350 with 2.52:1 1st gear) and heavy-duty TH400 (2.48:1 1st gear), the 4-speed automatic overdrive 700R4/4L60 (0.70:1 overdrive), the manual 4-speed SM465 with 6.55:1 granny low gear, and modern manual swaps like the NV3500 and NV4500 (0.73:1 overdrive).
Selecting or rebuilding the appropriate transmission for a 1973–1987 Chevrolet or GMC truck dictates the vehicle's dual personalities: aggressive low-end torque multiplication for launching heavy trailers versus tranquil engine RPM during Interstate cruising. For the first nine model years (1973–1981), GM trucks relied exclusively on 1:1 top gear ratios across both automatic and manual configurations, demanding tall rear axle ratios (e.g. 2.76 or 3.08) to maintain comfortable highway engine RPMs.
The arrival of the four-speed automatic 700R4 overdrive transmission in 1982 fundamentally modernized the Squarebody platform. Featuring a 30 percent overdrive (0.70:1 ratio) and an internal lockup torque converter clutch, the 700R4 allowed truck owners to run steep trailering gears (such as 3.73 or 4.10) for maximum acceleration while dropping highway cruise engine speeds below 2,000 RPM at 70 MPH. Owners can correlate these transmission options against annual trim changes on our Squarebody model year and trim matrix.
Interactive Highway RPM, Gear Ratio & Tire Diameter Calculator
Engine cruising RPM is governed by a strict physical relationship between vehicle road speed, axle reduction, transmission output, and the true rolling diameter of the rear tires:
Drivetrain Highway Cruising RPM Formula
Variable Definition & Units
Target vehicle cruising speed over asphalt.
Ring and pinion mechanical gear multiplication factor (e.g. 3.08, 3.73, 4.10).
Transmission gear ratio for the selected gear (1.00 for direct drive, 0.70 for overdrive).
True measured or calculated rolling height of tire from tread to tread.
Mathematical constant converting minutes, miles, inches, and tire revolutions.
At 70 MPH with a 3.73 axle ratio, a 700R4 in overdrive (0.70 ratio), and 31-inch tires: (70 × 3.73 × 0.70 × 336.13) / 31.0 = 1,983 RPM.
If you are running metric tire sizes, overall tire diameter is calculated as:Tire Diameter (inches) = [(2 × Width mm × Aspect Ratio / 100) / 25.4] + Rim Diameter. For example, a popular 275/60R15 rear street tire yields: [(2 × 275 × 0.60) / 25.4] + 15 = 27.99 inches.
Factory Gear Ratio Matrix: TH350, TH400, 700R4, SM465 & NV4500
The table below outlines exact factory gear ratios for the most common original and popular modern swap transmissions:
| Transmission Model | Type | 1st Gear | 2nd Gear | 3rd Gear | 4th Gear | 5th Gear | Reverse |
|---|---|---|---|---|---|---|---|
| Turbo Hydra-Matic 350 (TH350) | Automatic 3-Speed | 2.52:1 | 1.52:1 | 1.00:1 | — | — | 1.93:1 |
| Turbo Hydra-Matic 400 (TH400 / 3L80) | Automatic 3-Speed Heavy Duty | 2.48:1 | 1.48:1 | 1.00:1 | — | — | 2.08:1 |
| 700R4 / 4L60 (Overdrive) | Automatic 4-Speed Overdrive | 3.06:1 | 1.63:1 | 1.00:1 | 0.70:1 | — | 2.29:1 |
| Muncie SM465 (Granny Low) | Manual 4-Speed Heavy Duty | 6.55:1 | 3.58:1 | 1.70:1 | 1.00:1 | — | 6.09:1 |
| New Venture NV3500 (5-Speed Swap) | Manual 5-Speed Overdrive | 4.02:1 | 2.32:1 | 1.40:1 | 1.00:1 | 0.73:1 | 3.55:1 |
| New Venture NV4500 (Heavy Duty 5-Speed) | Manual 5-Speed Overdrive HD | 5.61:1 | 3.04:1 | 1.67:1 | 1.00:1 | 0.73:1 | 5.04:1 |
For factory vehicle build verification, cross-reference your glove box SPID decal (e.g. RPO M40 for TH350 or MD8 for 700R4) using our universal GM truck VIN decoder.
Transmission Fluid Capacity, Viscosity & Filter Service Guide
Maintaining proper fluid pressure and thermal management is critical on heavy classic trucks. Factory fluid specifications and dry-fill vs service capacities are summarized below:
| Model | Pan Bolts | Service Fill (Filter Change) | Dry Fill (Total System) | Factory Fluid Specification |
|---|---|---|---|---|
| TH350 | 13 Bolts | 3.5 Quarts | 10.0 Quarts | Dexron III / VI Automatic Transmission Fluid |
| TH400 | 13 Bolts | 4.0 Quarts | 11.5 Quarts | Dexron III / VI Automatic Transmission Fluid |
| 700R4 | 16 Bolts | 5.0 Quarts | 11.5 Quarts | Dexron VI Synthetic / Conventional ATF |
| SM465 | Manual (0 Bolts) | 4.0 Quarts | 4.0 Quarts | SAE 80W-90 GL-4 Mineral Gear Lubricant |
Frequently Asked Questions About Squarebody Transmissions
01Can you replace a TH350 with a 700R4 without cutting the driveshaft?
Swapping from a short-tail (6-inch extension) TH350 to a 700R4 requires shortening the driveshaft by approximately 3.0 inches, moving the transmission crossmember rearward by about 2.0 inches, and installing a properly calibrated Throttle Valve (TV) cable geometry bracket. The overall transmission case length increases from 27.6 inches (TH350) to 30.7 inches (700R4).
02What happens if the 700R4 TV cable is not properly adjusted?
Unlike the TH350 which uses a vacuum modulator to regulate line pressure, the 700R4 relies entirely on the mechanical Throttle Valve (TV) cable. Driving a 700R4 with a slack or disconnected TV cable causes severely delayed or soft shifts and starves the 3-4 clutch pack of hydraulic pressure, resulting in catastrophic transmission slippage and burnout within as few as 10 to 20 miles of operation.
03How do you identify a TH350 vs TH400 oil pan?
Pan shape is the easiest external identifier. A TH350 oil pan is square with one corner chamfered off and uses 13 pan bolts. A heavy-duty TH400 pan has an irregular, kidney-like or Texas-shaped perimeter with an indent on the passenger side and also uses 13 bolts. A 700R4 pan is a clean rectangular shape with 16 pan bolts.
04What gear oil should you use in an SM465 manual transmission?
The cast-iron SM465 transmission requires SAE 80W-90 GL-4 mineral gear lubricant. Modern GL-5 lubricants should generally be avoided unless specifically verified safe for yellow metals, as aggressive sulfur-phosphorus EP additives in standard GL-5 oils can chemically corrode bronze synchronizer rings over time.
